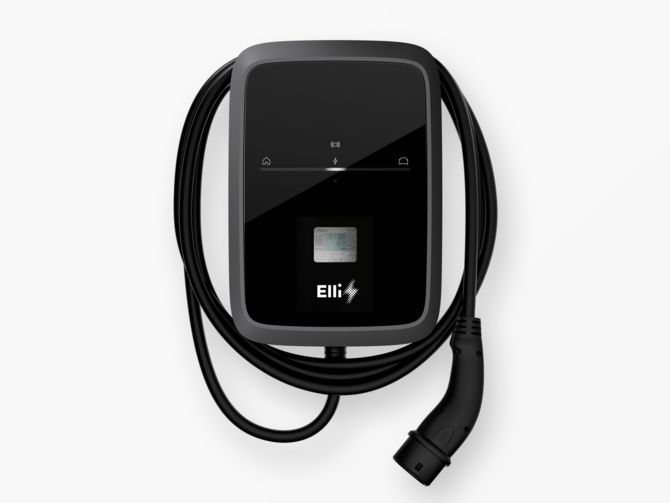

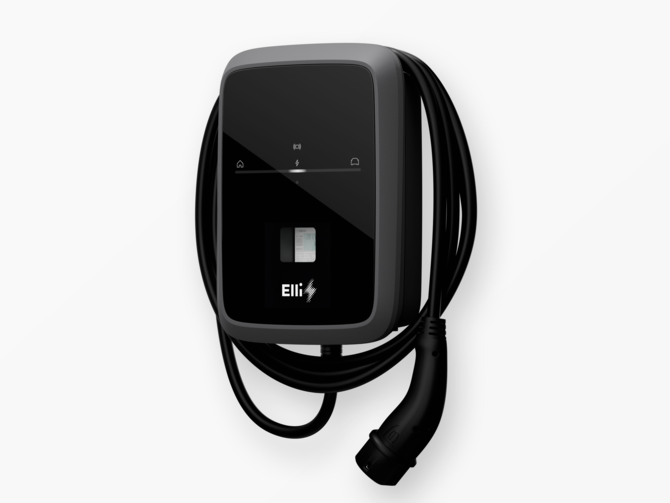

Elli Charger Pro 2 Eichrecht
SKU: 139915008
EAN: 4067989002681
Elli Charger Pro 2 Eichrecht
SKU: 139915008
EAN: 4067989002681
Eichrecht-certified energy tracking. Intelligent charging and cost savings. Developed for speed, efficiency, safety and seamless integration between home and electric car.
Note: The Elli Charger Pro 2 Eichrecht can initially only be used with the Elli backend. The connection of further backends is in preparation. If you have specific backend requirements, please contact us.
22 kW
7,5 m
Type 2
LAN, Wi-Fi
LTE¹
App control
Mounting kit included
Solar Surplus Charging
Charger, RFID card, manual
Free delivery in 20 to 25 weeks
€1,499.00 incl. VAT
Fully charged for just €6.50¹
Charge smart and save big with the Elli Charger 2. By using your home’s solar energy and dynamic electricity tariffs, you can fully charge your EV for just €6.50¹. Enjoy efficient, cost-effective, and sustainable charging that significantly reduces your charging costs.
Fast, future-proof, reliable
The Elli Charger 2 delivers fast, adjustable charging power up to 22 kW, ensuring your EV is always ready to go. Engineered and manufactured in Germany, it provides durability and universal compatibility. Whether for indoor or outdoor use, it's built to handle the future of e-mobility.
Seamlessly sync charger, EV, and home
The Elli Charger 2 integrates seamlessly with your EV and home, creating a personalized charging experience. Your EV and charger communicate automatically to optimize energy use, charging profiles, and battery status. Use your app to stay connected and in control via Wi-Fi, LAN, or LTE connectivity.
Best solar charging
Maximize your solar energy with the Elli Charger 2 which dynamically adjusts charging power between 1.4 kW and maximum charging power to match your surplus solar energy. Solar forecast charging optimizes your solar energy use, while seamlessly syncing with optional dynamic green electricity tariffs for truly sustainable charging.
- SKU: 139915008
- Product line 2nd generation (2024)
- Model Charger Pro 2 Eichrecht
- Power type AC
- Max. charging power (kW) 22 kW
- Rated current 6 A (1-phase) - 32 A (3-phase)
- Rated voltage 220-240 V, 380-415 V
- Cable length (m) 7,5 m
- Connector type Type 2
- LAN, Wi-Fi Yes
- LTE¹ Yes
- RFID card authentication Yes
- App control Yes
- Mounting kit included Yes
- Smartcharging² Price optimized charging / Solar forecast charging / Solar surplus charging / Phase switching
- Solar Surplus Charging Yes
- Charge level indicator Yes
- Metering & vizualization Yes
- Energy meter (MID) No
- Calibration law conform Yes
- Dynamic load management (Hub/Satellite) Yes
- Dynamic phase Switching Yes
- Impact Resistance Grade IK10
- Blackout protection with external hardware Blackout protection / allows multiple chargers
- Outdoor ready (IP55) Yes
- Weight (kg) 6.3
- Dimensions 372 mm x 260 mm x 116 mm
- DC fault current sensor (DC IΔN 6mA) Yes
- Remote access via branded app Yes
- Remote software updates Yes
- Communication with vehicle EN IEC 61851-1, ISO 15118-2
- Number of charge points 1
- Communication protocol³ OCPP 2.0.1J, EEBUS, Modbus TCP/RTU
- Operating temperature -25° to +55° C (with solar radiation)
- Maximal humidity 85 % (non-condensing)
- Rated frequency 50 Hz
- Integrated residual current monitoring No, external RCD type A required
- Chassis Polycarbonate
